A warning may appear when trying to add a dimension in the drawing to an arc-shaped cut of a cylinder.

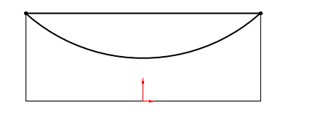

The feature was made by extruding a cut with the following sketch.
Procedure: One way to dimension the drawing is to expand the drawing view in the feature manager and show the sketch. A dimension can be added to the sketch entities and afterwards the sketch can be hidden.
Notes: Another solution is to create a section view. The section view can be dimensioned without a warning.
